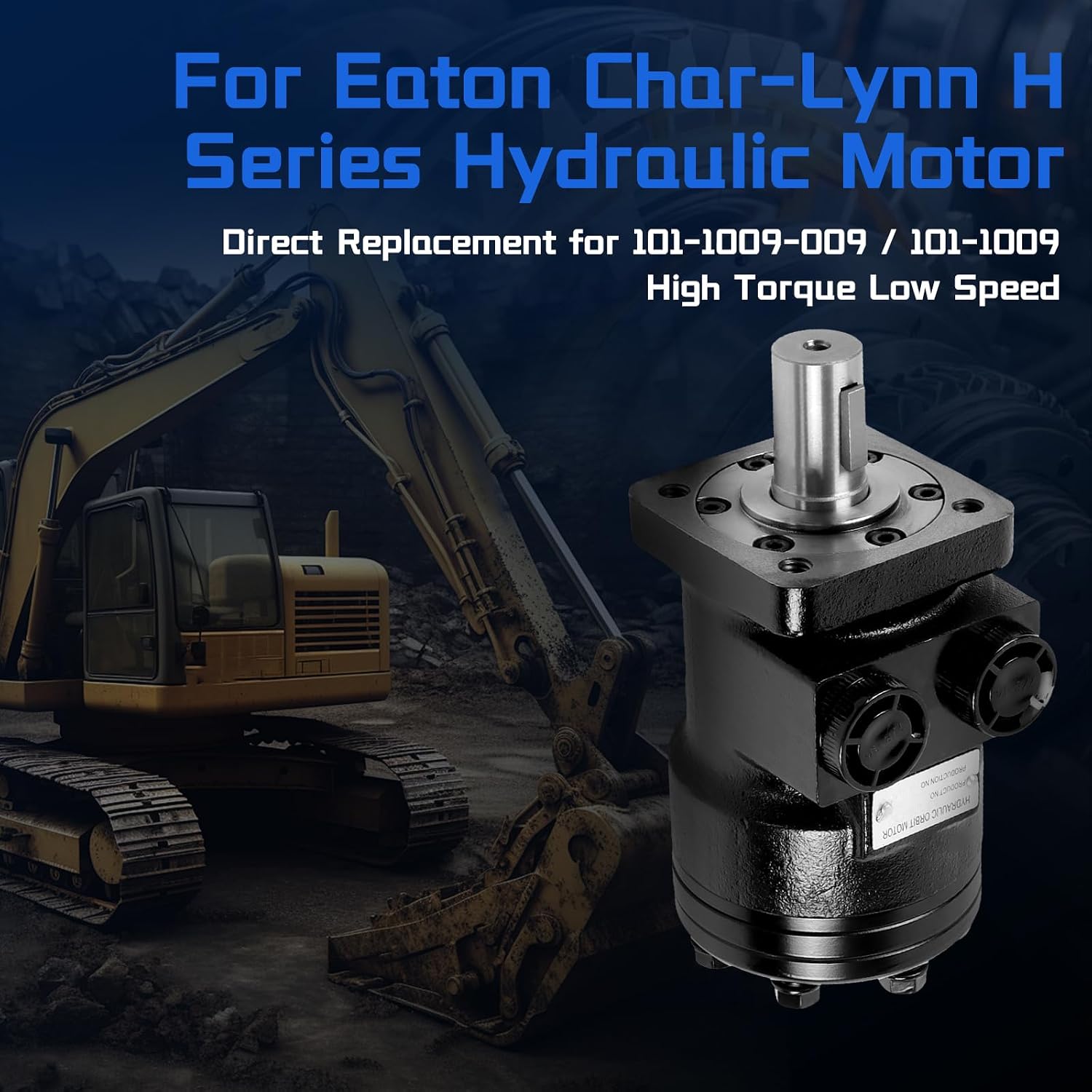

101-1009-009 New Hydraulic Motor Replacement for Eaton Char-Lynn H Series High Torque Low Speed Orbital Motor for Construction Agriculture Mining
US$64.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by pawelstefanowicz.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$64.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by pawelstefanowicz.com
Free 30-day returns Details
Product details
| Management number | 247605198 | Release Date | 2026/08/16 | List Price | US$64.00 | Model Number | 247605198 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 101-1009-009 (H Series specification). 𝐈𝐦𝐩𝐨𝐫𝐭𝐚𝐧𝐭: 𝐕𝐞𝐫𝐢𝐟𝐲 𝟏.𝟕𝟓 𝐢𝐧𝐜𝐡 𝐩𝐢𝐥𝐨𝐭 𝐝𝐢𝐚𝐦𝐞𝐭𝐞𝐫, 𝟒-𝐛𝐨𝐥𝐭 𝐩𝐚𝐭𝐭𝐞𝐫𝐧 (𝟑.𝟐𝟓 𝐢𝐧𝐜𝐡 𝐛𝐨𝐥𝐭 𝐜𝐢𝐫𝐜𝐥𝐞), 𝐚𝐧𝐝 𝟏 𝐢𝐧𝐜𝐡 𝐤𝐞𝐲𝐞𝐝 𝐬𝐡𝐚𝐟𝐭 𝐛𝐞𝐟𝐨𝐫𝐞 𝐨𝐫𝐝𝐞𝐫𝐢𝐧𝐠. 𝐕𝐞𝐫𝐢𝐟𝐲 𝐭𝐡𝐚𝐭 𝐭𝐡𝐞 𝐦𝐨𝐭𝐨𝐫 𝐦𝐚𝐭𝐜𝐡𝐞𝐬 𝐲𝐨𝐮𝐫 𝐞𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭'𝐬 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐩𝐚𝐭𝐭𝐞𝐫𝐧, 𝐬𝐡𝐚𝐟𝐭 𝐬𝐢𝐳𝐞, 𝐚𝐧𝐝 𝐩𝐨𝐫𝐭 𝐜𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧. Flush hydraulic lines prior to installation. Recommended viscosity 100 SUS minimum. Replacement seal kit 60540-000.
- [🔧] Direct Swap – 2.8 cu/in Displacement: This hydraulic motor 101-1009-009 replaces for Eaton Char-Lynn H Series models with 2.8 cu in/rev (46 cc/rev) displacement . The 4-bolt flange mount with 1.75 inch pilot diameter and 3.25 inch bolt circle lets this 101-1009-009 hydraulic motor bolt directly onto harvesters, food processing equipment, and sweepers without modifications.
- [⚙️] High Speed – 969 RPM Max: This H series hydraulic motor delivers 969 RPM continuous speed with 646 lb-in torque at 1800 PSI . The Gerotor spool valve design with three moving parts (gerotor-star, drive, shaft) helps this 101-1009-009 replacement hydraulic motor maintain consistent power for low-speed high-torque (LSHT) applications.
- [🛢️] SAE O-Ring Ports – 7/8-14 Side Ports: For Eaton Char-Lynn style hydraulic motor features 7/8-14 UNF-2B SAE O-ring side ports for reliable leak-free connections . The O-ring design on this 101-1009-009 hydraulic motor creates seals without thread sealant, saving installation time. No case drain required.
- [🏗️] Keyed Shaft – 1 Inch with 1/4 Keyway: 101-1009-009 replacement hydraulic motor comes with 1 inch straight keyed shaft, 1/4 inch Woodruff keyway, and 1/4-20 UNC-2B threaded end hole . Cast iron housing with primer low gloss black finish . Max operating temperature 180°F, minimum -30°F.
| ASIN | B0GHYMDKLN |
|---|---|
| Model | Char-Lynn Eaton H Series |
| Brand Name | SINOCMP |
| Part Number | 101-1009-009 |
| Manufacturer | SINOCMP |
| Number of Items | 1 |
| Included Components | Wiper Motor |
