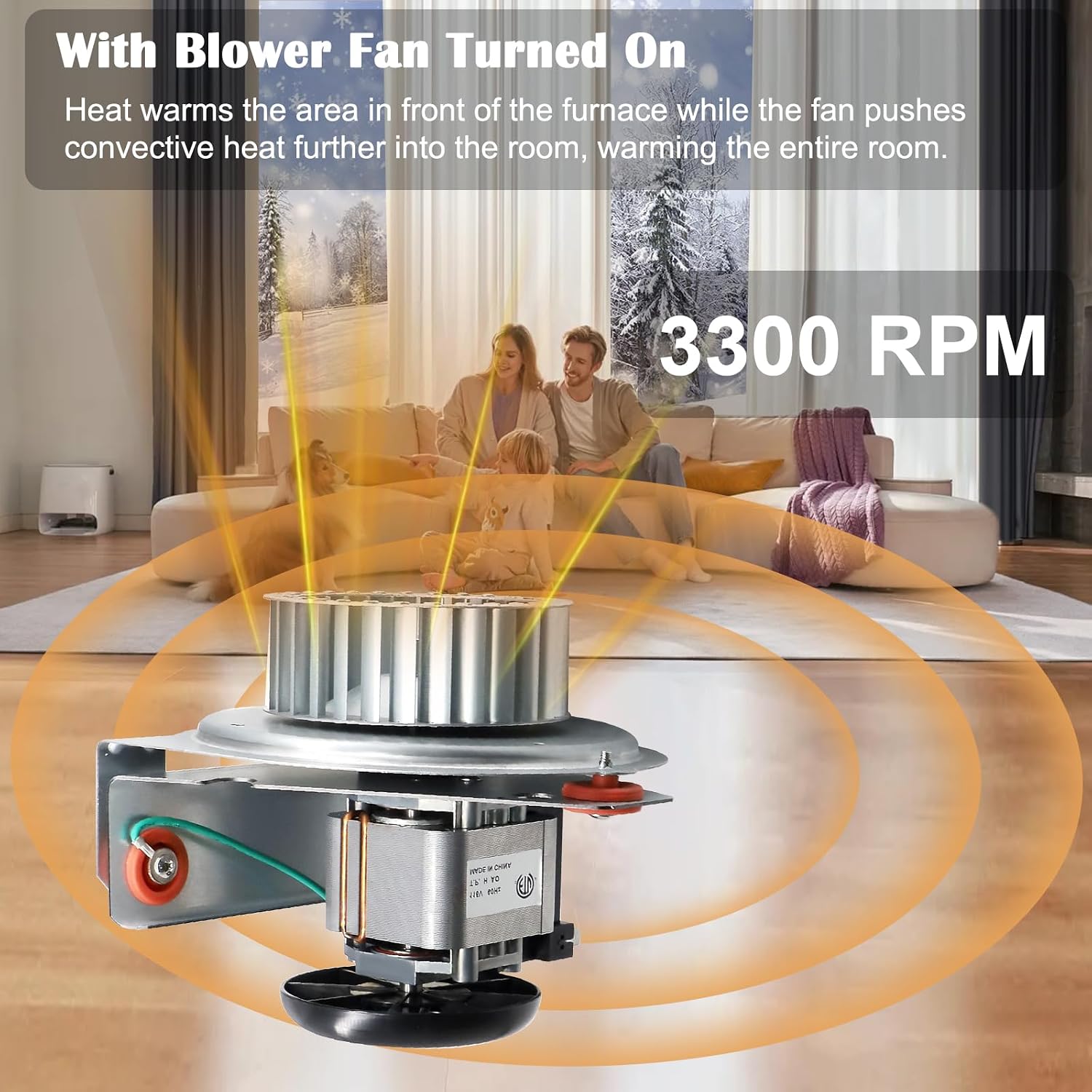

Hiorucet HC21ZE117 318984-753 Inducer Motor Assembly for Carrier Payne Bryant, Jakel J238-150-1571 Furnace Draft Inducer Blower Motor HC21ZE117-B with HC21ZE114A Motor and LA11AA005 Blower Wheel.
Product details
| Management number | 210105307 | Release Date | 2026/04/02 | List Price | US$46.40 | Model Number | 210105307 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SpecificationsVolts: 115VAMP: 1.8Horsepower: 1/25 hpPhase: Single PhaseProduct Type: MotorRPM: 3300RPM Range: 1400 and Above► Furnace Inducer Motor Assembly Replaces this Model Numbers: 318984-753, J238-150-1571, HC21ZE117, HC21ZE117-B, 2347563, AP5634784, 318984753, HC660005, SM4753, 3195827, TJ318984-753, 323435-730, 323435730, 323435-724, 323435724, 323435-701, 323435701, 321373-712, 321373712, 321373-711, 321373711, 321373-710, 321373710, 321373-709, 321373709, 321373-708, 321373708, 321373-707, 321373707, 321373-706, 321373706, 321373-705, 321373705, 321373-704, 321373704, 14001, MARS90971, K674, 10704.► Inducer Motor Replaces Model Numbers: HC21ZE114 HC21ZE114A. ► Blower Wheel Replaces Model Numbers: LA11AA005, P441-1146, LA11AA004, LA11AA006, P4411146.
- ►This Jakel j238-150-1571 Furnace Draft Inducer Blower Motor HC21ZE117-B is Designed to Replace the Carrier, Bryant, Payne, Jakel Furnace. ► Inducer Motor Replaces Model Numbers: HC21ZE114 HC21ZE114A. ► Blower Wheel Replaces Model Numbers: LA11AA005, P441-1146, LA11AA004, LA11AA006, P4411146.
- ►Furnace Inducer Motor Assembly Replaces this Model Numbers: 318984-753, J238-150-1571, HC21ZE117, HC21ZE117-B, 2347563, AP5634784, 318984753, HC660005, SM4753, 3195827, TJ318984-753, 323435-730, 323435730, 323435-724, 323435724, 323435-701, 323435701, 321373-712, 321373712, 321373-711, 321373711, 321373-710, 321373710, 321373-709, 321373709, 321373-708, 321373708, 321373-707, 321373707, 321373-706, 321373706, 321373-705, 321373705, 321373-704, 321373704, 14001, MARS90971, K674, 10704.
- ►Specifications: 318984-753 Inducer Motor Volts: 115V, Horsepower: 1/25 hp, 1.8A, 60Hz, 25MHP, 3300RPM, Cont. Duty Thermally Protected, Class B. LA11AA005 Draft Inducer Blower Wheel: CW Closed End, Steel Wheel.
- ►Inducer Motor Function: This 318984-753 inducer motor kit is designed to expel the exhaust gas from the furnace. Older inefficient furnaces allowed the flue gas to escape the unit with virtually no resistance. Newer high efficient furnace heat exchangers are so restrictive that the flue gases cannot exit the furnace though natural draft. Therefore, the inducer is required to pull the flue gases through the heat exchanger. The inducer motor is usually the first thing that starts up when your furnace calls for heat.
- ►Package Includes: This is a BRAND NEW Furnace Inducer Motor / Exhaust Motor Assembly. Including A LA11AA005 Wheel, HC21ZE114A Furnace Motor, Mounting Bracket, Harness Adapter (Molex), Harness Adapter (AMP). Comes with a 365 day return and exchange.
| Model | HC21ZE117 |
|---|---|
| Brand Name | Hiorucet |
| Model Name | HC21ZE117 Furnace Draft Inducer Motor |
| Manufacturer | Yiming |
| Included Components | Draft Inducer Motor Assembly |
