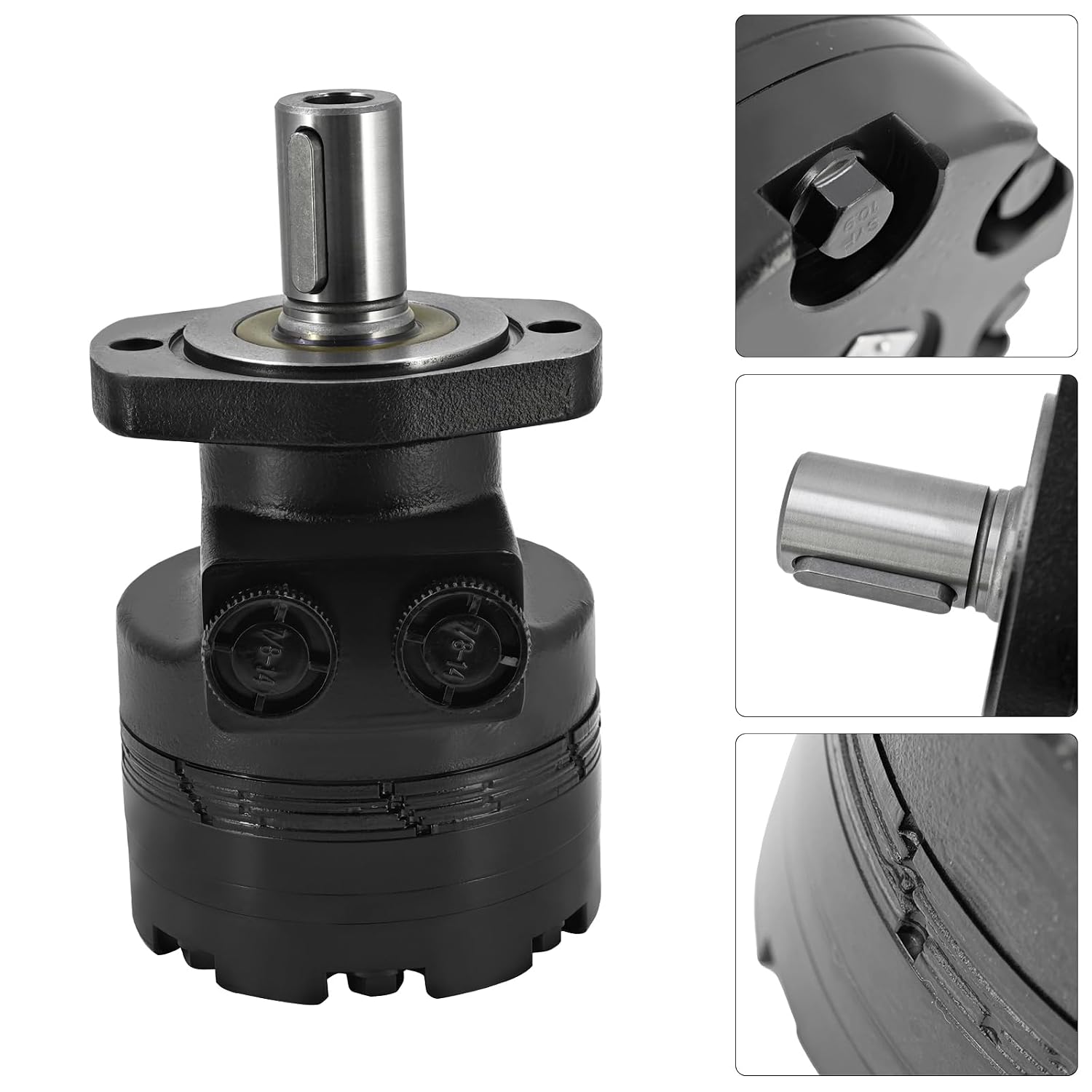

TG0140AS030BBBC Hydraulic Motor 141cc 1-1/4" Keyed SAE A 2 Bolt

Replacement Part Number:TG0140AS030BBBCSpecifications:Displacement: 141 cm³/rev (8.6 in³/rev)Maximum Speed: 660 RPMMaximum Oil Flow: 76 L/min (20 GPM) continuous / 95 L/min (25 GPM) intermittentMaximum Torque: 390 Nm (3455 lb-in) continuous / 530 Nm (4692 lb-in) intermittentMaximum Differential Pressure: 207 bar (3000 PSI) continuous / 276 bar (4000 PSI) intermittentMaximum Performance: 33 kW (45 HP)Shaft Type: 1-1/4" Keyed ShaftRotation: Standard RotationMounting: SAE "A" 2-Bolt MountingPorting: 7/8-14 SAE PortsMaximum Side Load at Key: 16,000 N (3,597 lb)Compatible with various hydraulic equipment applications including excavators, cranes, harvesters, tractors, and other machinery requiring a low-speed high-torque hydraulic motor.

• 【Replacement Part Number】: TG0140AS030BBBC.
• 【Large Volume High Torque】: This Hydraulic Motor Has a 141cc/rev (8.6 cu.in/rev), 1 1/4" Keyed Shaft, Porting: 7/8-14 SAE, Mounting: SAE "A" 2 Bolt, Max. Continuous Pressure 3000 PSI (207 bar), Max. Intermittent Pressure 4000 PSI (276 bar), Max. Flow Rate Continuous 76 L/min (20 GPM), Max. Speed 660 RPM, Continuous Torque 3455 lb-in (approx. 390 Nm), Intermittent Torque 4692 lb-in (approx. 530 Nm).
• 【High Torque Hydraulic Output】: Provides up to 4692 lb-in intermittent torque and supports up to 4000 PSI intermittent pressure for demanding hydraulic applications.
• 【Direct replacement】: This hydraulic motor is manufactured with OE standard specifications for direct replacement and is made of high quality cast iron to better increase service life.
• 【Wide Applications】: Designed as a replacement hydraulic motor fit for Parker TG Series applications including excavators cranes harvesters tractors and other hydraulic equipment.
• 【Buy with Confidence】: Our products all come with 1 Year return and change. If you have any questions, please don't hesitate to reach out, we will reply to you within 24 hours.
